| MODEL |

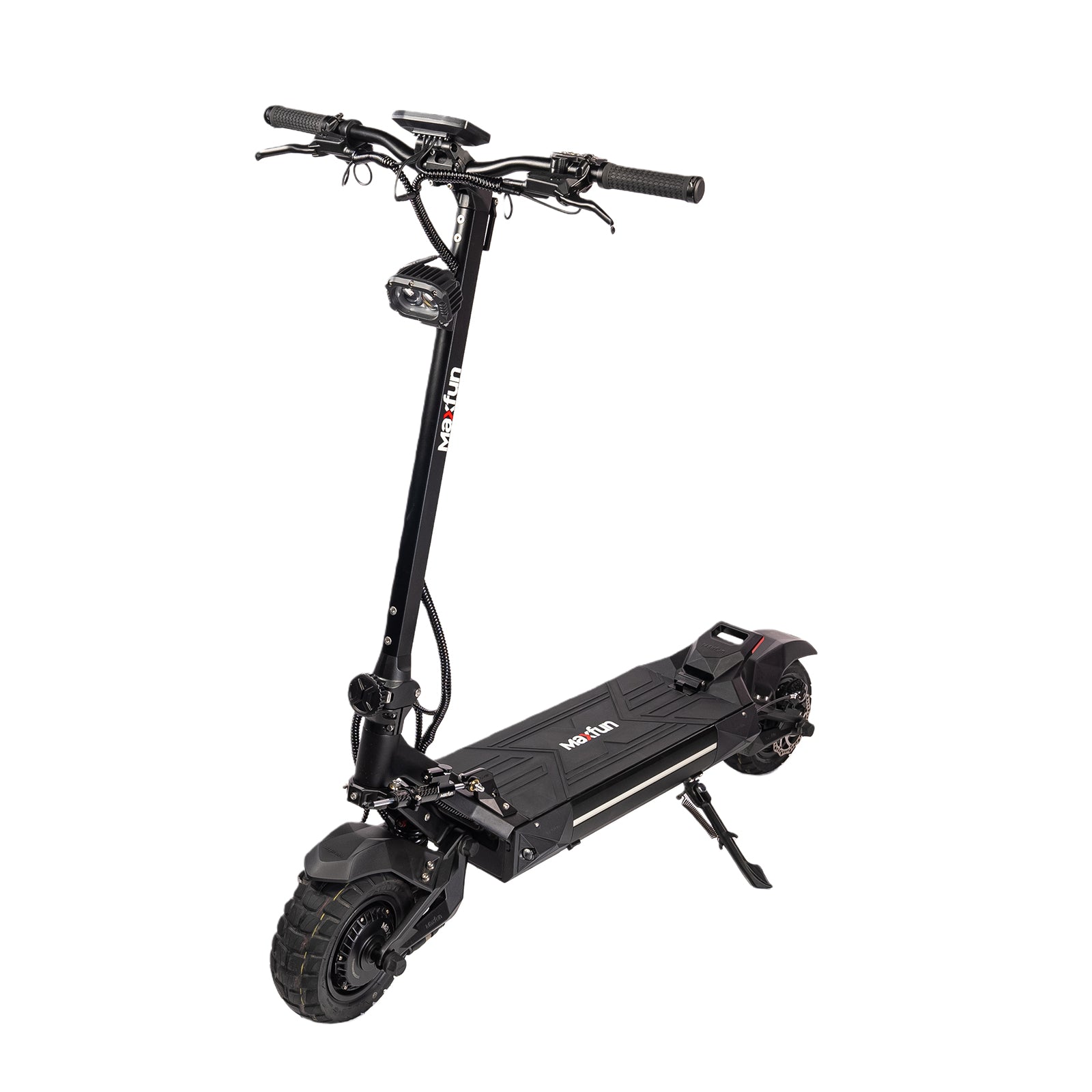

MAXFUN 10 PRO |

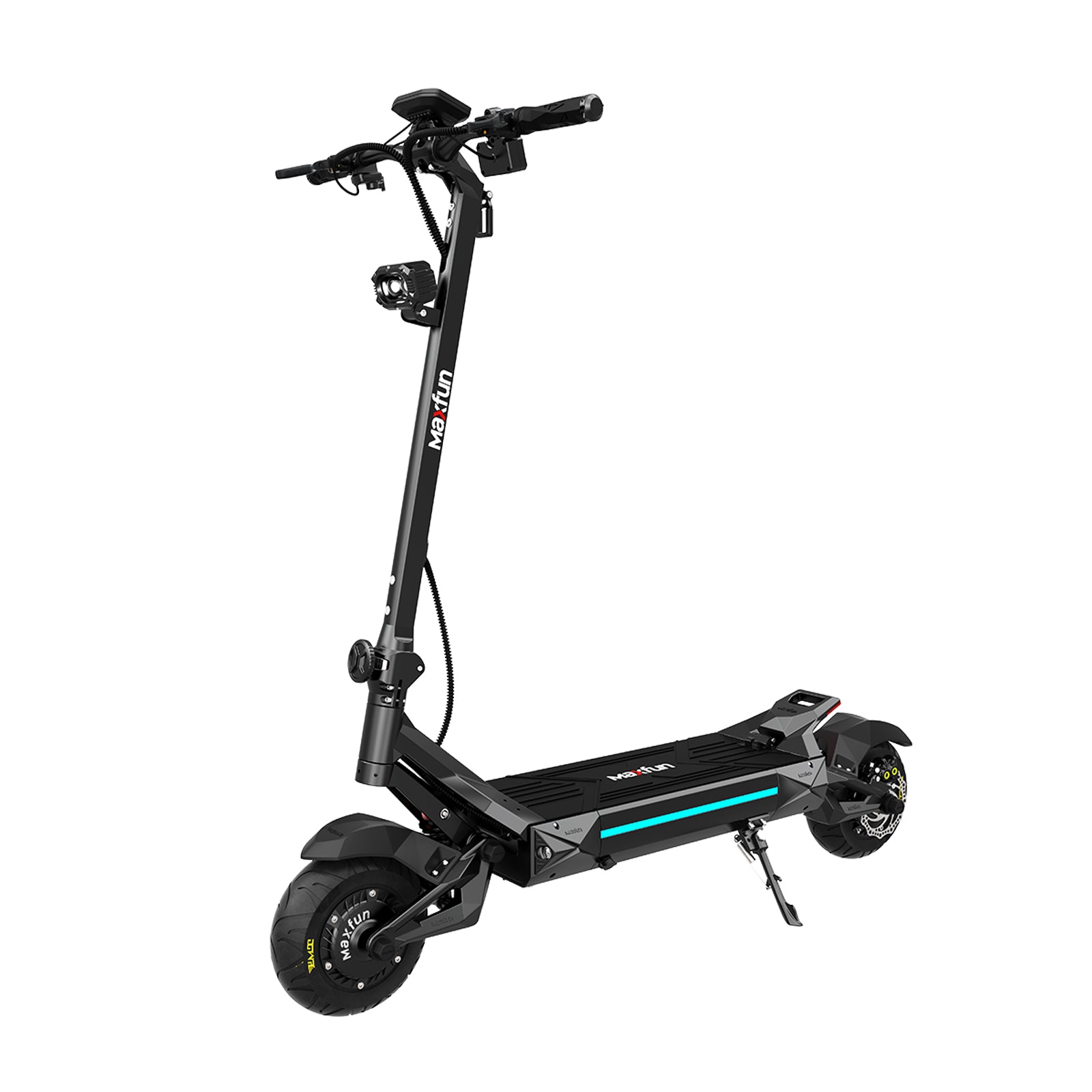

MAXFUN 10 MAX |
| PICTURE: |
|
|
| MOTOR: |
3600W (Dual 1800W 3-Speed Motors) |
3600W (Dual 1800W 3-Speed Motors) |
| Controller: |
Dual 40A Sine Wave Controller |
Dual 40A Sine Wave Controller |
| TOP SPEED: |
25 km/h(85 km/h on private road) |
25 km/h(90 km/h on private road) |
| MAX RANGE: |
Up to 110 km |
Up to 120 km |
| BATTERY: |
72V 30Ah Samsung Removable Lithium Ion |
72V 35Ah Samsung Removable Lithium Ion |
| CHARGING TIME: |
6 Hours |
7 Hours |
| CHARGING PORTS: |
2 ports (1 x 5A charger included) |
2 ports (1 x 5A charger included) |
| TIRES: |
Tubeless Tires 90/55-6 |
PMT 10" x 3.5" Tubeless Tires |
| SUSPENSION: |
EXA Form Adjustable Hydraulic Front & Rear Shocks |
EXA Form Adjustable Hydraulic Shocks |
| BRAKES: |
NUTT 4-Piston Hydraulic Front & Rear Disc Brakes |
MAGURA 4-Piston Hydraulic Disc Brakes |
| LIGHTS: |
LED Headlights, LED Braking and Turn Signals |
LED Headlights, LED Braking and Turn Signals |
| DIGITAL DISPLAY: |
Multi-Function LCD Display |
Multi-Function LCD Display |
| VOLTAGE CUT OFF: |
62V |
62V |
| WEIGHT: |
109 lbs (49.5kg) |
112 lbs (50.8kg) |
| RIDER WEIGHT: |
350 lbs (160kg) |
350 lbs (160kg) |
| DIMENSIONS: |
Folded Dimensions: 54.7" (L) x 28.4” (W) x 22.4” (H)
Upright Dimension: 54.7" (L) x 28.4” (W) x 52.3” (H) |
Folded Dimensions: 54.1" (L) x 28.4” (W) x 21” (H)
Upright Dimension: 54.1" (L) x 28.4” (W) x 52.2” (H) |
| DECK TO HANDLEBARS: |
39.2" |
39.2" |
| DECK PLATE: |
25.7" x 9.1" |
25.7" x 9.1" |
| GROUND CLEARANCE: |
6.4" |
6.4" |
| STEERING DAMPER: |
Included |
Included |
| ADJUSTABLE HANDLEBARS: |
No |
No |
| CLIMBING ANGLE: |
33° incline |
33° incline |
| IP RATING: |
IP65 Rating |
IP65 Rating |
| COLORS: |
Black |
Black |
